Do you have trouble with hazelnuts, cashew, peanuts and other nuts peeling off the skin not clean? Don't worry, this mini hazelnut color sorter can help you solve these problems, so you no longer need to spend a lot of labor and time to sort by hand,greatly improving the competitiveness of enterprises!
Order(MOQ) :
1Payment :
TT/LCProduct Origin :
Hefei,ChinaColor :
White,can customizeShipping Port :
Shanghai/NingboLead Time :
Within 3 working daysCertificate :
CEProduct Name :
hazelnut color sorterWarranty :
2 yearsMachine Function :
color/size/quality sortingHazelnut color sorter is a new generation of artificially intelligent color sorting machine，is for detecting different colors of nuts that pass before them.Topsort nuts color sorting machine high cost performance ,special algorithm,colorful CCD camera for clolor and shape sorting,sorting accuracy can achieve 99.99%.
Mini Color Sorter Machine Features
1. Small size, small footprint, equipped with platform and wheels, easy to move.
2. Low total price, high economic efficiency and high return on investment.
3. Colour imaging, fully functional, suitable for colour sorting of a wide range of materials.
4. Multi-function, multi-purpose, widely used in nuts, rice, cereal,beans.
5.High and specification ensures high stability, with high sorting accuracy, less carry over and low energy consumption.

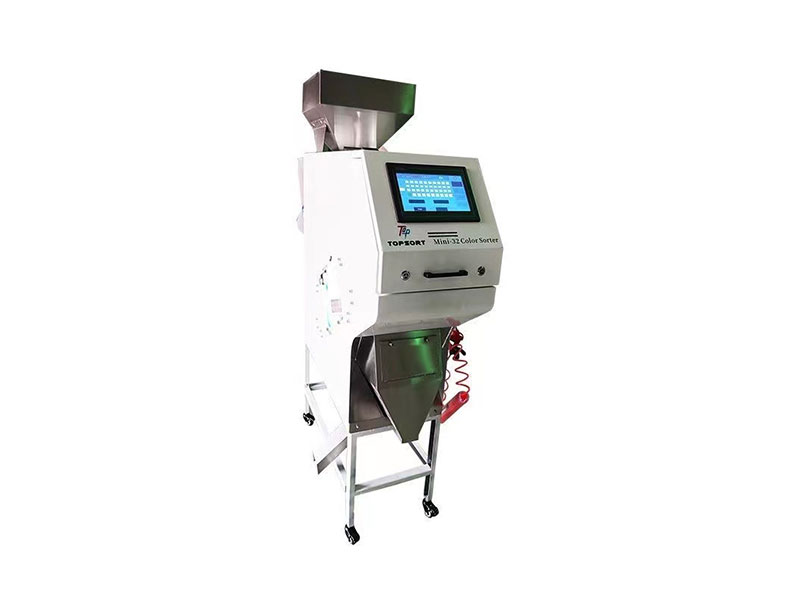

Mini Color Sorter MachineTechnical Parameters
| Model | MINI-32 |
| Channles | 32 |
| Power | 0.5kw |
| Weight | 100kgs |
| Dimensions | 420*1100*1820mm |
| Power voltage | 220V/50HZ/60HZ |
| Sorting accuracy | 99.99% |
| Capacity | 300-500kg/h |
| Air consumption | <0.5m3/min |
| Air pressure | 0.6-0.8Mpa |
Color Sorter Structure Schematic
♦ The selected material enter the machine from the hopper at the top, passes through the vibration of the vibrator device, slides down the channel, accelerates its descent into the observation area of the sorting room, and passes between the sensor and the background plate.
♦ Under the action of the light source, according to the intensity and color change of the light, the system generates output signals to drive the solenoid valve to blow out the different color particles into the waste material cavity of the receiving hopper, and the good selected material continue to fall into the finished product cavity of the receiving hopper, so as to achieve the purpose of sorting.
Superb Nuts Sorting Sulotions
Our Color Sorter Machine Core Advantages
Sucessful Cases
Why Choose TOPSORT Color Sorter
Top technology
♦ Ultra HD imaging technology to see subtle defects with 4 times higher resolution；
♦ High computing power deep learning platform with 4 times more data processing power；
♦ LED optical sensing system, energy saving and more durable. Using low-temperature concentrated LED light source, intelligent dimming, 16 million kinds of color mixing, energy saving and more durable；
♦ Intelligent operation platform, easy to operate, easy to grasp the real human-machine dialogue, intelligent docking；
♦ Equiped with imported famous brand key components to guarantee the reliability.
Free Training
We supply complete training for all customers for free,we train in the following ways:
1. Engineers go to customer site to explain how to adjust, use and maintain the machine.
2. Customers can also come to our factory to learn the knowledge related to the machine.
3. Online remote control training or video training is available if customer no need send engineer.
Competitive Price
Competitive price thanks to the mass production and lean production
Remote control for global
Machine equipped with WIFI device, online solve software parameters setting problems.
Fast Delivery
Safe stock of standard parts of the machine guarantees the quick delivery of the machine
A wealth of experience
More than 18 years of professional manufacturing experience, more than 10 years exporting experience overseas.Products are exported to more than 100 countries and regions. We can give you best sorting solutions according to your raw material .
Customer Concerns
Question 1: What are your advantages compared with your competitors?
Answer:With rich industry experience and strict Product Quality Control systems, we provide:
1). Stable and reliable product at reasonable price. 2). Good customer service: Fast response to any inquiry or question. 3). On-time delivery.
Question 2: Are you a manufacturer?
Answer: Yes, we are glober manufacturer with more than 18 years' color sorter producing and export experience.
Question 3: How to install and use the machine?
We will supply the installation instructions or videos and our engineers will train the operators.
Question 4. How long about the guarantee period?
Two years. The warranty period starts on the day of delivery.We supply lifelong software upgrade services for our customers.
Question 5: Do you have English Manual for each machinery?
Answer: Yes. The instruction manual,the test report and other data sheets related shall be provided by us.
